    The rails_admin gem in Ecommerce

    Steph Skardal

    By Steph Skardal
    August 9, 2011

    Update: Since writing this article, this gem has had several updates. All rails_admin configuration now must be pulled out of ActiveRecord models and into the initializer. The look and feel has also been updated. Read about it more here. Additionally, End Point has released a Ruby on Rails Ecommerce Engine with a sleek admin interface driven by rails_admin. Read more about it here.

    I recently installed the rails_admin gem into a new Rails project. This particular site is currently running on Interchange, but it is not an ecommerce business, so Interchange is overkill for the site. The client has recently decided to make the switch to Rails (and DevCamps) with our help, and they have a moderate budget to do so. For the first increment, we considered installing phpMyAdmin for them to work directly with the data until a nice admin interface was built, but instead I spent a bit of time installing the rails_admin gem which has been on my mind for the last 6 months. The result: I’m extremely impressed with what rails_admin has to offer.

    To show some examples of rails_admin in action, I’ll use the data model from a Sinatra ecommerce setup I recently wrote about, because it has a basic ecommerce data model that should be universally understood by my coworkers and clients.

    To create a new site, I went through the standard Rails 3.0 installation steps:

    • gem install rails -v=3.0.9 to install Rails
    • rails new mystore to create a new Rails application
    • In my gemfile, I added:
    gem 'devise'
    gem 'rails_admin', :path => 'vendor/gems/rails_admin'
    gem 'ckeditor' # for WYSIWYG editing
    gem 'paperclip' # and installed imagemagick, for image attachments

    • sudo bundle install to install the project gems
    • rake rails_admin:install to install rails_admin, which also runs devise setup and migrations
    • rails generate ckeditor:install to install ckeditor
    • Copied my Sinatra data migrations and models over to my Rails application (except for the User, which is now replaced with devise’s User)
    • rake db:migrate to apply all migrations
    • rails s to start my server
    • Also, I created a user from the rails console

    Note that I also tried to use Rails 3.1 and the master branch of rails_admin, but I was experiencing a few bugs, so I decided to stick with Rails 3.0.9 for this article. Coincidentally, the rails_admin master branch just jumped to Rails 3.1 very recently. There are a few Rails 3.1 things to be aware of with the Rails 3.1 Asset Pipeline.

    Out of the Box

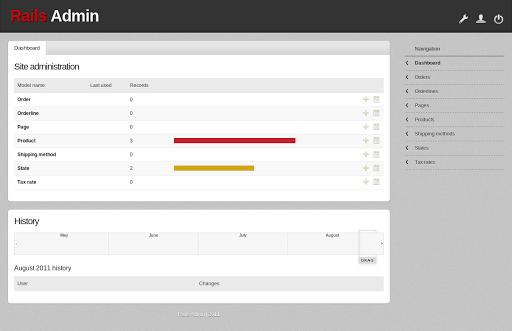

    After I got everything up and running, my first look at /admin looks nice. It shows the number of records per model, recent history, and a list of models for navigation on the right side:

    rails_admin has a nice DSL to modify the admin interface. I applied a few updates to my application, described below.

    Remove Model / Tab

    First, I wanted to hide Users from the /admin, which required the change below. Note that you can also pass a block to determine the visibility of a model, which may be valuable if you want to limit the visibility of models to specific roles or users.

    class User < ActiveRecord::Base
      ...

      rails_admin do
        visible false # or visible { some block }
      end
    end


    Users Tab removed from navigation

    List Views

    Product List View, rails_admin Out of the Box

    Next, I updated my products list view with the following changes, to limit the list view to the name and price field, sort by the name, and format the price:

    Limit listing of fields. Add default sort by :name field. Add formatting to price field.
    class Product < ActiveRecord::Base
      rails_admin do
        list do
          field :name
          field :price
        end
      end
    end

    class Product < ActiveRecord::Base
      rails_admin do
        list do
          sort_by :name
          field :name
          field :price
        end
      end
    end

    class Product < ActiveRecord::Base
      rails_admin do
        list do
          sort_by :name
          field :name
          field :price do
            formatted_value do
              sprintf "$%.2f",
            end
          end
        end
      end
    end


    Here’s a screenshot of the Products list view after these updates:

    WYSIWIG-ing It

    Next, I want to add a WYSIWYG editor for one of my fields, which can be accomplished with the following change:

    class Page < ActiveRecord::Base
      rails_admin do
        edit do
          include_all_fields
          field :content, :text do
            ckeditor true
          end
        end
      end
    end


    ckeditor used for content field.

    Paperclip Image Attachments

    rails_admin also works nicely with Paperclip, a very popular image attachment Rails gem. Paperclip requires that imagemagick be installed on the server. I add the following code to my product model, which already had the Paperclip reference to an attached image, and the migration to introduce the Paperclip required attachment fields.

    class Product < ActiveRecord::Base
      rails_admin do
        edit do
          include_all_fields
          field :image do
            thumb_method :thumb
          end
        end
      end
    end


    The products edit view is now a multitype form to allow for image upload.

    And to update the show view, I made this change:

    class Product < ActiveRecord::Base
      ...
      rails_admin do
        show do
          include_all_fields
          field :image do
            thumb_method :thumb
          end
        end
      end
    end


    Thumb image added to product show view.

    Overriding Views

    Another common update in rails_admin might be the need to override views to change the look of the backend interface. I accomplished this by copying the rails_admin partial views into my Rails application and updating them to include “My Store” branding:

    # app/views/rails_admin/main/_title.html.haml
    %h1.title
      = link_to rails_admin_dashboard_path do
        %span.red My
        %span.white Store


    After overriding the header view, “My Store” now appears in the header.

    And an override of app/views/layouts/rails_admin/main.html.haml removes “Rails Admin | 2011” from the bottom of the page.

    Conclusion

    There’s tons(!) more you can do with the gem, and it’s documented thoroughly here. rails_admin comes out of the box with export to CSV, JSON, and XML logic, which makes it a nice base for building simple APIs. It recognizes the Rails associations has_many, belongs_to, has_and_belongs_to_many, etc. It also includes user history and filtering of items and does authentication with devise, which has become a very popular user authentication choice in Rails. I found a few potential disadvantages:

    • Some type of import functionality is missing (needed for my client)
    • ActiveRecord is the only ORM supported, but that’s fine with me.
    • It’s right on the bleeding edge of Rails, which makes it ideal for new Rails applications and can’t always be used for older apps.
    • I am curious to see if performance suffers on applications with a large number of records.

    Despite the potential disadvantages, I’ve been extremely impressed with it’s functionality and how much development time can be saved here to allow more time for custom business-centric functionality for a client.

    Note that a couple of popular alternatives to rails_admin are ActiveAdmin and Typus

    What next?

    Since I’ve already built a Sinatra front-end ecommerce application, I might try to get my Rails admin running with a Sinatra frontend by following tips in this article. It’ll be a little more complex here since I need to map user and admin and user routes to Rails and other routes to Sinatra, but the article covers the general idea for dispatching the routes. Why do it this way? Because you get the best of both worlds: a nice Rails backend for the CRUD interface and API management, and a speedy Sinatra driven frontend with simple paths to define product navigation, product pages, content pages, the cart and checkout process (which is not standard RESTful behavior). You can also leverage Ruby gem functionality in both Sinatra and Rails.
